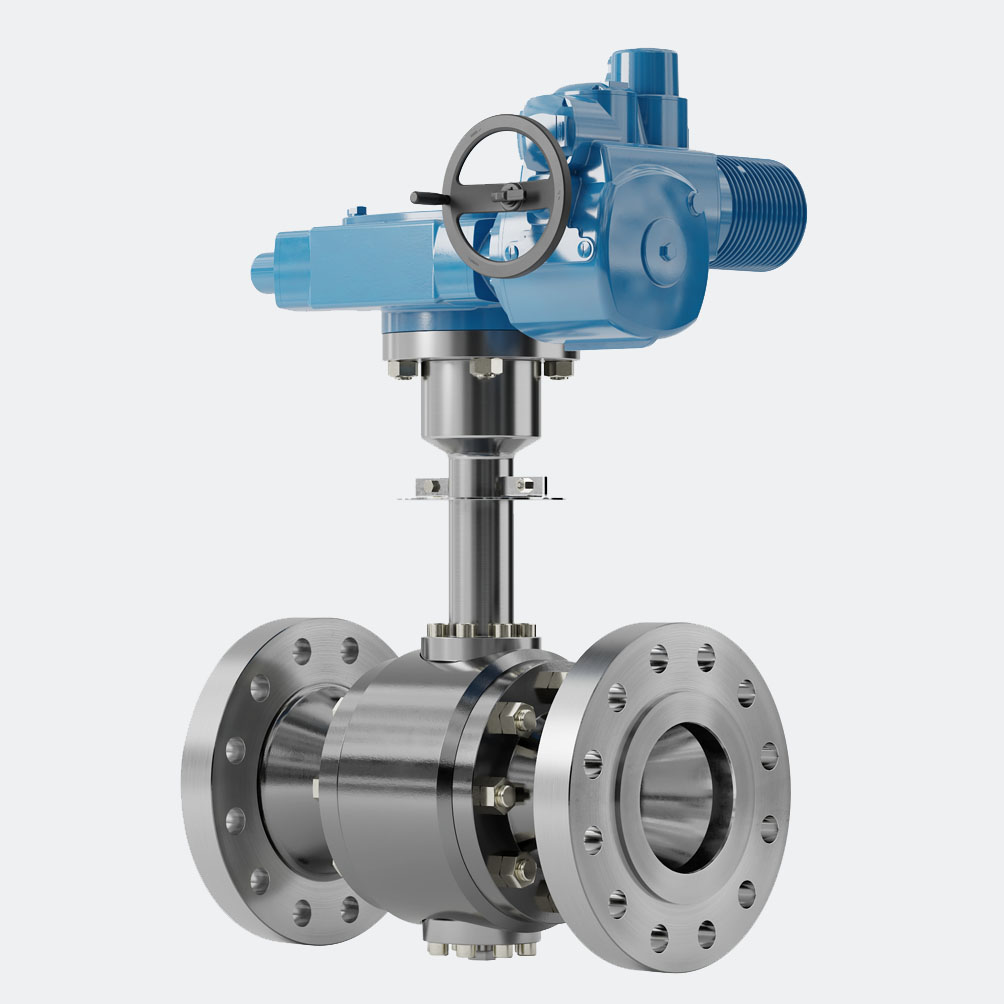

Cryogenic Ball Valves

NPS 2"-24" Class 150-2500

The cryogenic ball valves are widely installed on applications involving media at extremely low temperatures, such as the production, storage and transportation of liquefied natural gas, hydrogen, oxygen, etc.


Design BS 6364, ISO 28291, ASME B16.34 and Shell MESC

Characteristics
Design Features: Extended bonnet; • PCTFE or PEEK seat insert; • Lip Seal; • Dynamic, live loaded, gland bolting.

Size range: 2” to 24”

Pressure Class: ANSI 150-2500

Temperature range: down to -196°C (-321°F)

Certifications: ISO 15848 RATE A; ISO 28921; SHELL MESC 77/306; SHELL MESC 77/200; SHELL MESC 77/312 and BS 6364

Seat design: • Soft Seated (PCTFE / PEEK inserts); • Single and double piston effect

Materials: Stainless steel

Connections: Flanged RF, RTJ, butt-weld
